ARB high output portable compressor 12V - CKMP12

ARB high output portable compressor 12V - CKMP12

Add To Cart


The ARB CKMP series portable air compressor is a world class recreational product designed and built to commercial / industrial / military standards for the user who values dependability as much as performance.

  • Ultra compact design makes this the highest flowing portable compressor in its class.

  •  Constructed entirely of light weight, high strength engineering grade materials, including military and aerospace standard components.

  •  Fully sealed components for moisture and dust resistance.

  •  Motor is 100% ball bearing equipped, and features a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.

  •  Motor is thermal cut-out protected against damage caused by extreme temperature use.

  •  Pressure switch and 40 amp automotive relay equipped electrical system prevents run-on when not filling, or any damage to compressor or hoses as a result of the pressure generated from a kinked air line.

  •  Illuminated isolating switch is easy to see at night, and protects the user from hazardous sparking when connecting the alligator clips to the battery terminals.

  •  Heavy duty Maxi-Fuse equipped power leads for professional in-line circuit protection.

  •  Hard-anodized cylinder bore and PTFE (Teflon) impregnated carbon fiber piston seal for reduced friction and maximum trouble free life.

  •  Compressor piston is equipped with a German made high shock rated roller bearing.

  •  High density and high flow washable sintered bronze air filter element.

  •  Over-pressure safety valve equipped as a back-up protection from either pressure switch failure, thermal over pressure generated in a hot vehicle (i.e., no need to drain pressure when finished use.), or accidental connection to an external high pressure source.

  •  CKMP12 is certified compliant to; EN 55014.1 (AS/NZS CISPR 14.1) and meets or surpasses the following Australian and European directives; 2004/108/EC – EMC directive.

Consists of:

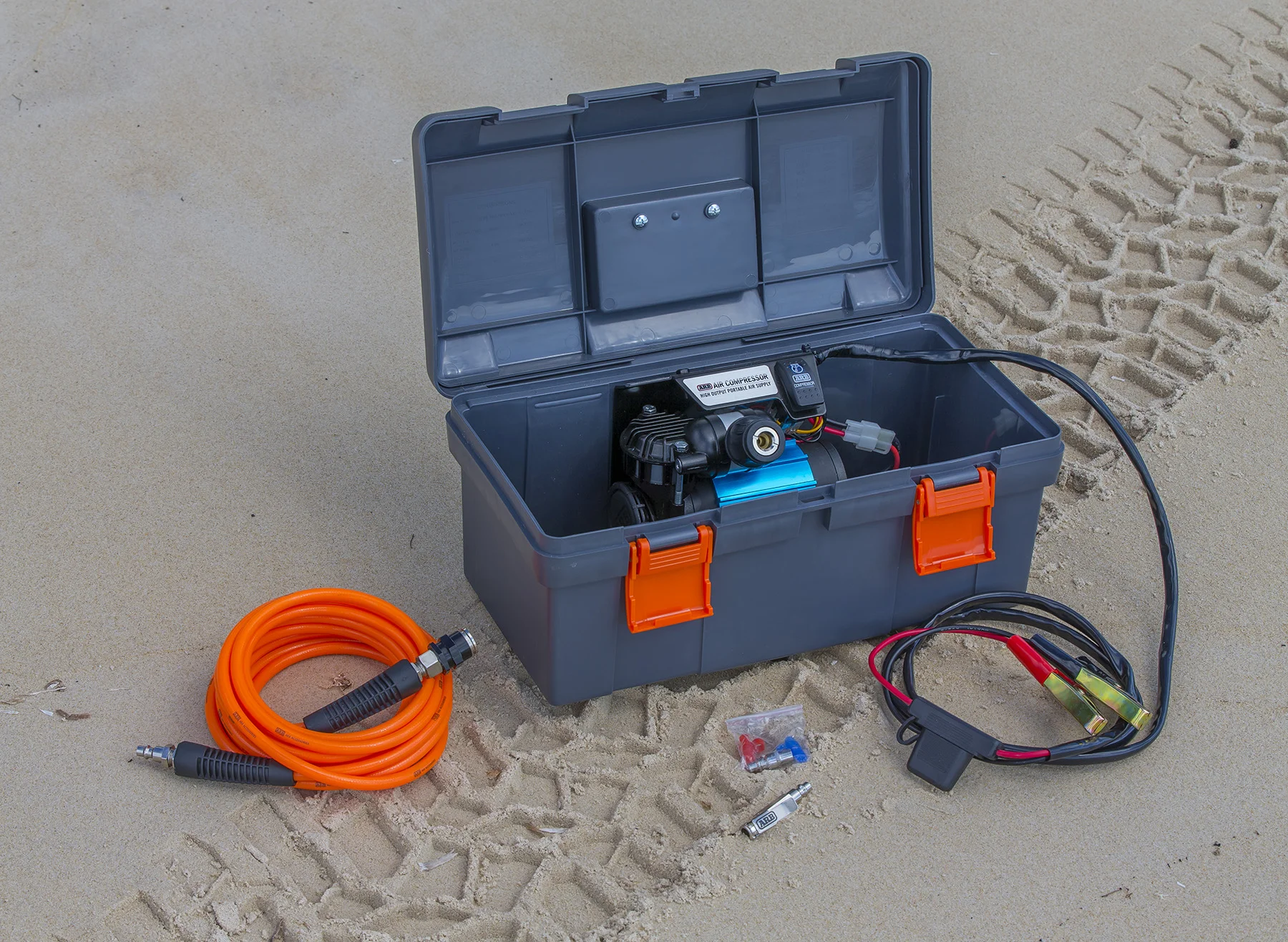

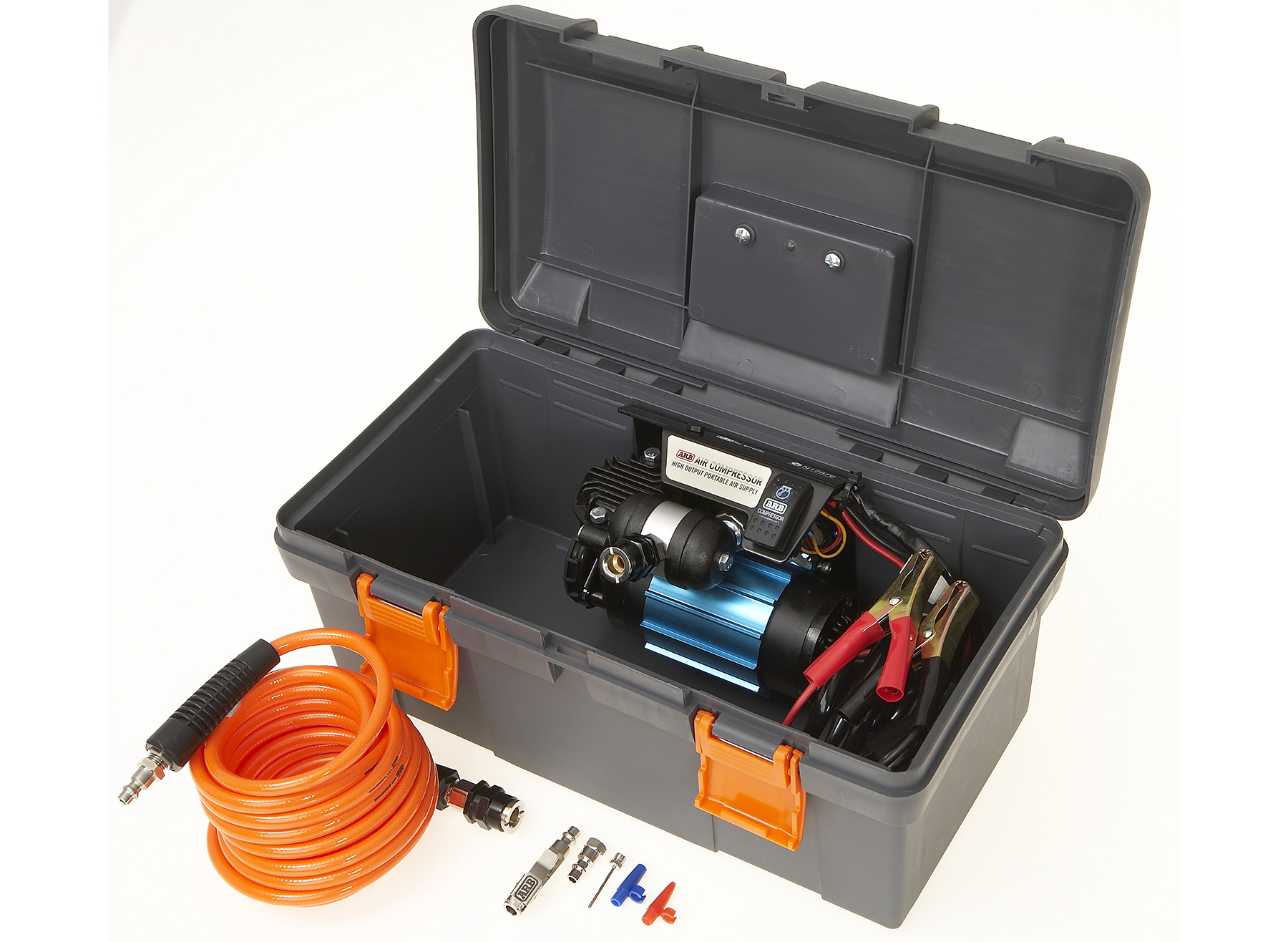

Fully assembled and performance tested air compressor mounted into a quality tradesman grade hard case.

  •  OEM quality illuminated compressor isolating switch.

  •  High quality wiring loom with automotive grade alligator clamp type battery contacts, and a pressure switch driven automotive relay control circuit.

  •  Splash resistant air filter with washable high-flow sintered bronze filter cartridge.

  •  6 meter [20 ft] long high quality abrasion and heat resistant air hose with male to female couplings.

  •  Hose couplings are specially designed corrosion resistant, one-handed (push-lock) quick connect type to suit US industrial standard air fittings (Ref: compatible types Section 1.3).

  •  Inflation accessories kit including high-flow tyre filler attachment (US industrial standard) with integral stop-valve, a Schrader valve to US industrial standard adaptor, and extra nozzle attachments for inflating items such as sports balls, air mattresses, etc.

    Product Dimensions:
    -LENGTH 440 mm 17.32inches

    -WIDTH 238 mm 9.37 inches

    -HEIGHT 208 mm 8.19 inches

    Product Colour:
    Grey / Blue
